(Some) Progress on the 3D printer

One of my work colleagues has an Arduino kit, that includes amongst other things a stepper motor driver, an ULN2003APG board,  and I convinced him to lend it to me.

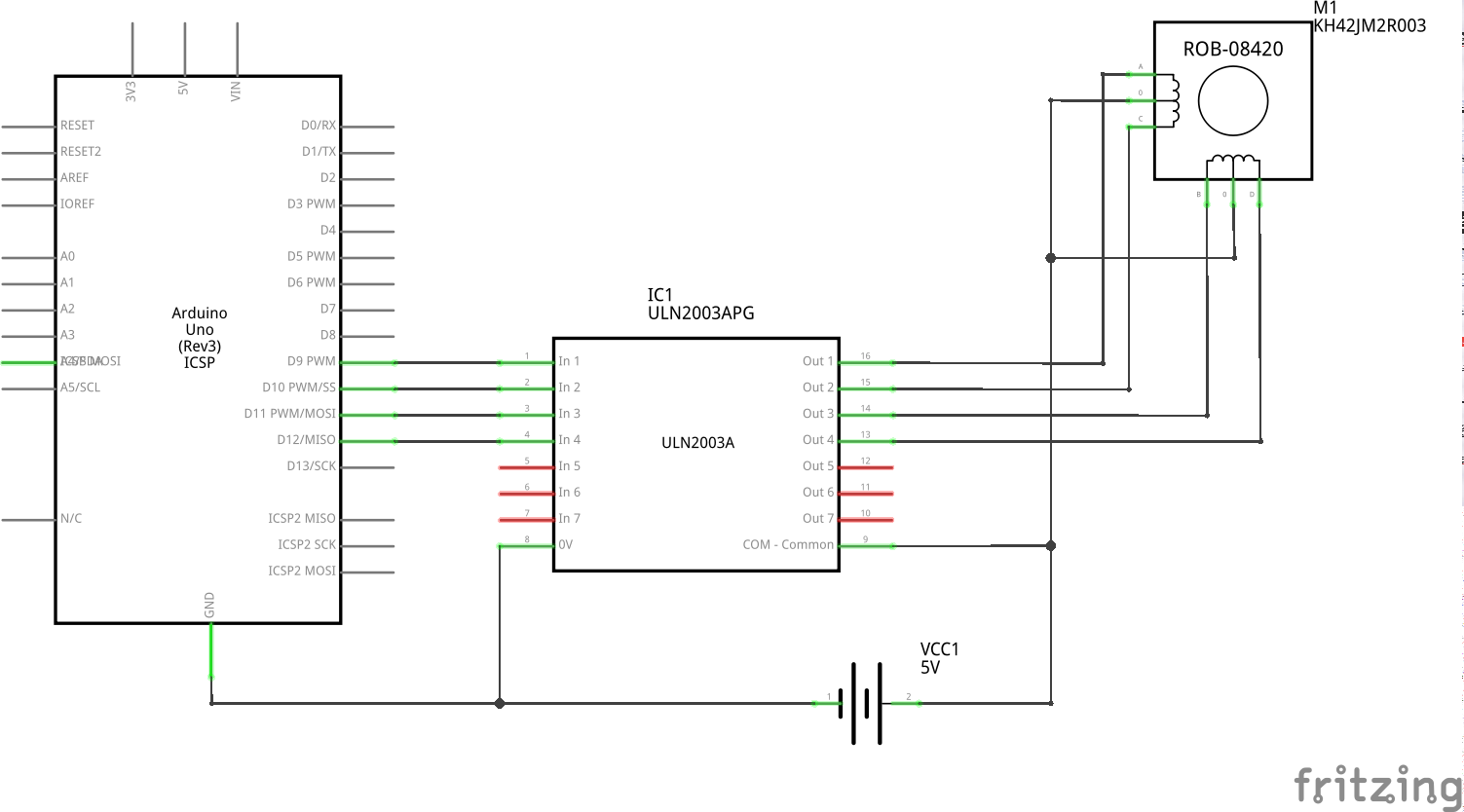

This weekend I had some time, so I played a bit with it. After reading it’s data sheet, and comparing some examples I found online with other motors; finding those motors data sheets and comparing their coils connections with my motor, I got to this schematic:

And with the tutorial code for stepper motors I got it working. I’ve initially done a revolution test, to make sure I got the number of steps, wiring and direction right. Also I’ve connected 2 multimeters to make sure I have a safe voltage and current. I’ve tested this with several speeds, using the LEDs on the driver board to check the steps order.

Once this was a success, I’ve moved on to connecting this driver to the prototype pillar I’ve made for the 3D printer. I ran the same code with 3 motor revolutions, to have it move the carriage on a longer distance.

After this I’ve noticed a few problems:

• The motor is juddering
• How do I control how much to go up or down?
• The driver board was making it difficult for me to follow the wiring, so I removed the IC and placed it in the breadboard.

I went ahead to solve the second problem first.

I’ve hot glued 2 door switches at the top and bottom of the pillar, so the carriage pushes them when it gets to the top or the bottom. This would trigger a change of direction. I’ve done some tests with a couple of LEDs, to check if this would work. I’ve also added the option to stop the motor (both LEDs on) if both switches are pressed.

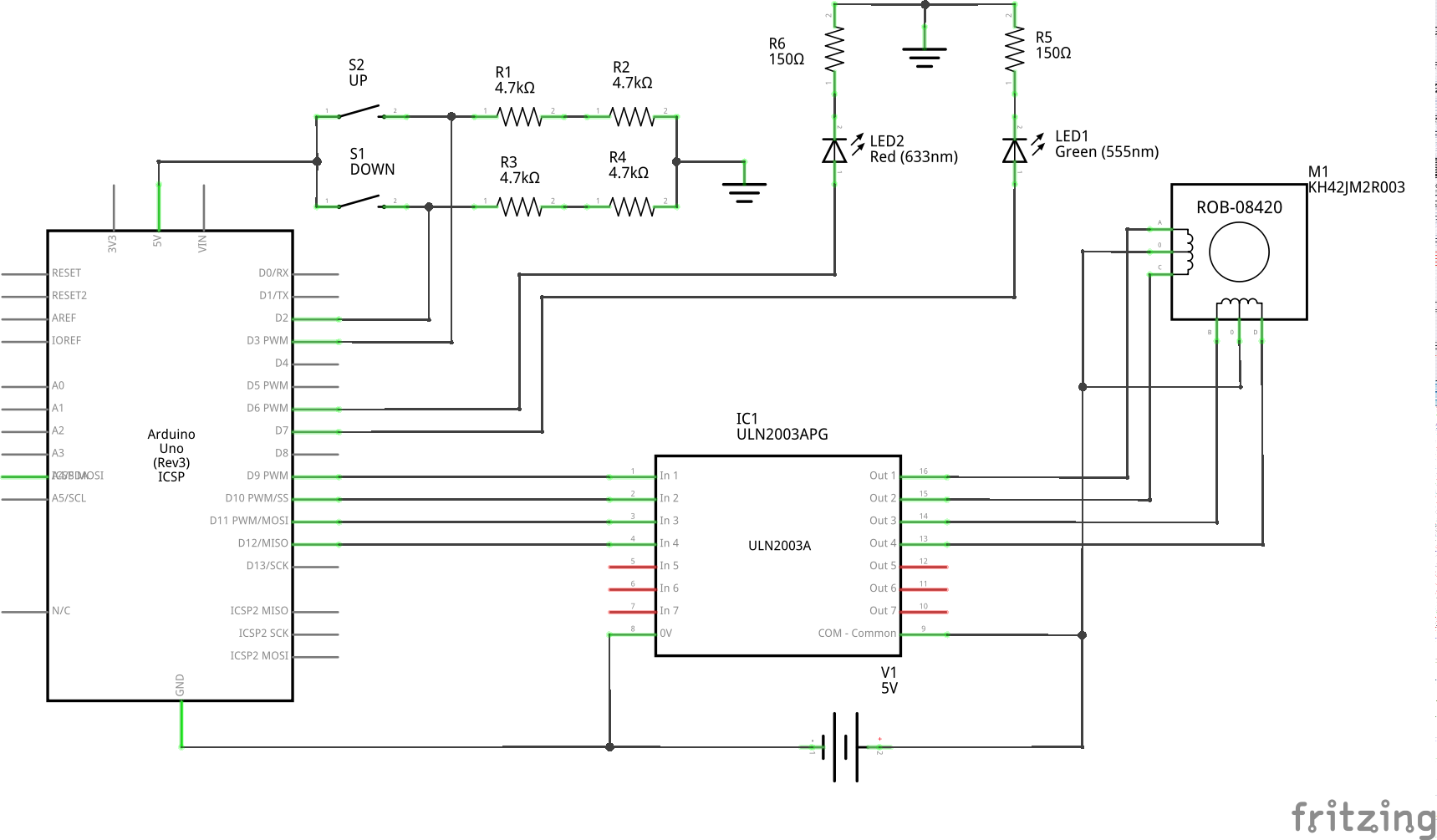

Of course I didn’t have the right value resistors (10k) so I used 2 *4 ,7k resistors for each button. Remember I’m building this from what ever scraps I find or can get my hand onto. Eventually, after some tests I got to this schematic:

I forgot to remove the LEDs after the test, so I left them there. No harm in that.

From the first run it was a success. I was thrilled.

Here’s the code I used:

#include
const int stepsPerRevolution = 200;
Stepper myStepper(stepsPerRevolution, 9,10,11,12);

const int led_up   = 7;
const int led_down = 6;

const int btn_up   = 3;
const int btn_down = 2;

int btn_up_state   = 0;
int btn_down_state = 0;

enum State {
  GOING_UP,
  GOING_DOWN,
  STOPPED
};

State currentState;

void stopMotor()
{
  digitalWrite(led_up,   HIGH);
  digitalWrite(led_down, HIGH);
  currentState = STOPPED;
}

void goUp()
{
  digitalWrite(led_up,   HIGH);
  digitalWrite(led_down, LOW);
  currentState = GOING_UP;
}

void goDown()
{
  digitalWrite(led_up,   LOW);
  digitalWrite(led_down, HIGH);
  currentState = GOING_DOWN;
}

void moveMotor()
{
  switch(currentState){
    case STOPPED:
      break;
    case GOING_UP:
      myStepper.step(1);
      break;
    case GOING_DOWN:
      myStepper.step(-1);
      break;
  }
}

void setup() {
  myStepper.setSpeed(150);
  pinMode(led_up,   OUTPUT);
  pinMode(led_down, OUTPUT);
  pinMode(btn_up,   INPUT);
  pinMode(btn_down, INPUT);

  stopMotor();
}

void loop() {
  btn_up_state   = digitalRead(btn_up);
  btn_down_state = digitalRead(btn_down);

  if (btn_up_state == HIGH && btn_down_state == HIGH)
  { // STOP the motor
    stopMotor();
  }
  else {
    if (btn_up_state == HIGH)
    { // Go down
      goDown();
    }
    if (btn_down_state == HIGH)
    { // Go up
      goUp();
    }
  }

  moveMotor();
}

Now onto solving the juddering problem.

Since the motor also seems to judger even if it’s not geared to anything, there must be a problem with either how I’m using the Stepper library, or with the library itself. It might be a problem just with this specific motor. I don’t know. I’ve started reading the inner parts of the library, and do some more research.

’till next time!
